WARN VR EVO 10 12V WINCH - WIRE ROPE

SKU: EVO-10-103252-SUN
Sale price$1,299.00

Hurry! Less than 10 left in stock
 More payment options

30 Days Return

Limited lifetime warranty (Geartrain), 7 year warranty (electrical)

100% Secure Transaction

FREE SHIPPING ZONE

We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.

Description

Warn manufacture winches and recovery accessories for 4 Wheel Drives, ATV’s, Tow Trucks, Hoisting and Utility applications in DC and/or Hydraulic configurations. WARN is the most recognized and respected brand of vehicle self-recovery winches, electric and hydraulic powered light industrial winches, and the market leader in OEM powertrain disconnect systems. Founded in 1948, the company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles, ATVs and utility vehicles. The company's Industrial Division markets electric and hydraulic winches and hoists to commercial, industrial and severe duty customers. Warn also has a line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting.
Features
  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
  • IP68-rated waterproof winch construction keeps the elements out
  • High-performance Albright contactor delivers maximum reliability
  • Control packs can be relocated for low-profile installations
  • Durable, one-piece cast-aluminum tie-plate for added strength and durability
  • Two-in-one remote with wired AND wireless options for ease of use and versatility
  • Limited lifetime warranty for mechanical parts and 7 years on the electrical
  • Note:Your order will dispatched within 2-3 business days.

GTIN

Note: Please do not use 'P.O. Box' as your mailing address

Specifications

Part number: EVO-10-103252
Dust & water rating: IP68
Fairlead: Roller
Rated line Pull: 10000lb (4536kg) single line
Wireless Control: Pendant Wired & Wireless
Motor: Series Wound
Recommended battery: 650CA minimum for winching
DRIVE GEAR TYPE: 3-Stage Planetary
Control: Pendant 3.5m
Battery leads: 25mm x 2m
Gear train: 3 Stage Planetary
Gear ratio: 218:1
Finish: Powder coated over primer
Weight: 33.9kgs
Clutch: Rotating ring gear
Bolt pattern: 254mm x 114.3mm
Brake: Spring Brake

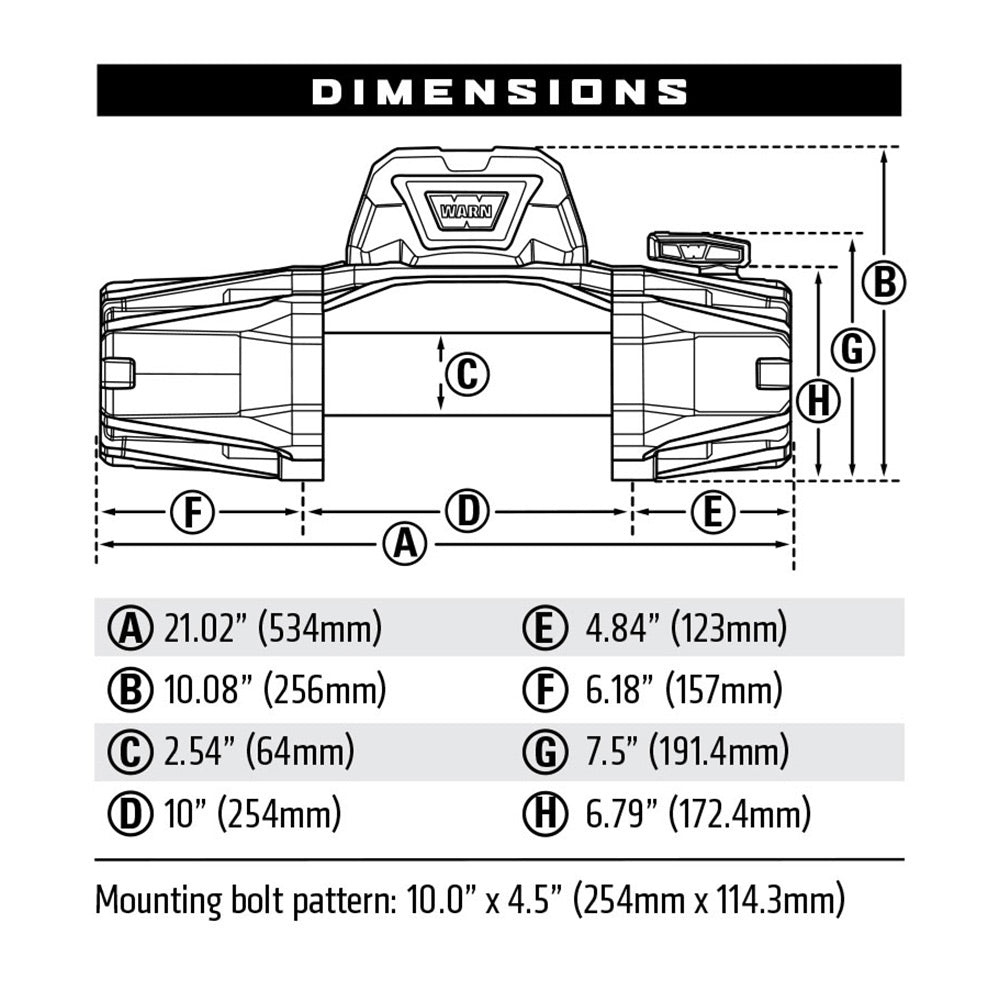

Overall dimensions (LxWxH): 534mm x160.5mm x 256mm
Drum size: 64mm x 230mm
Cable type: Wire Rope
Cable: 9mm x 27.4m

Package Includes

  • 1 x Electric Winch
  • 1 Set Accessories
  • 1 x User Manual

Warranty

Limited lifetime warranty (Geartrain), 7 year warranty (electrical)
