Lightfox 9 inch Osram Laser LED Driving Lights + 28 inch LED Light Bar + Wiring Kit

SKU: LF-DL-9LAS*2+LF-LB-28SR+BPWK-2WAY-DT-SUN
Regular price$695.95
Sale price$591.56
-15%
In Stock! Ship in 1 business day

30 Days Return

5 Years Warranty

100% Secure Transaction

FREE SHIPPING ZONE

We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.

Description

Our 9 inch laser driving lights provide unparalleled long-range illumination, allowing you to see far ahead and detect potential hazards. As the sun sets, you can rest assured knowing that you have a powerful set of laser driving lights mounted on your rig, illuminating your path with unwavering brightness. With central Osram Metal Can® laser module and Osram LED chips, Lightfox laser LED driving spot lights provide an impressive 1Lux@2,226m & 15,046lm (pair) output with 5° hyperspot and 15° spot beams. And their 5,700 Kelvin lighting helps reduce eye fatigue and provides optimal visibility. With AkzoNobel powder coating, our laser LED driving lights are built to withstand UV exposure & corrosion. The IP68 rating ensures they're impervious to water ingress, and the 12mm thick die-cast aluminum brackets ensure durability, making rupture a thing of the past. With their attention-grabbing black and clear covers, our laser LED driving spot lights are sure to turn heads wherever you go.
Features

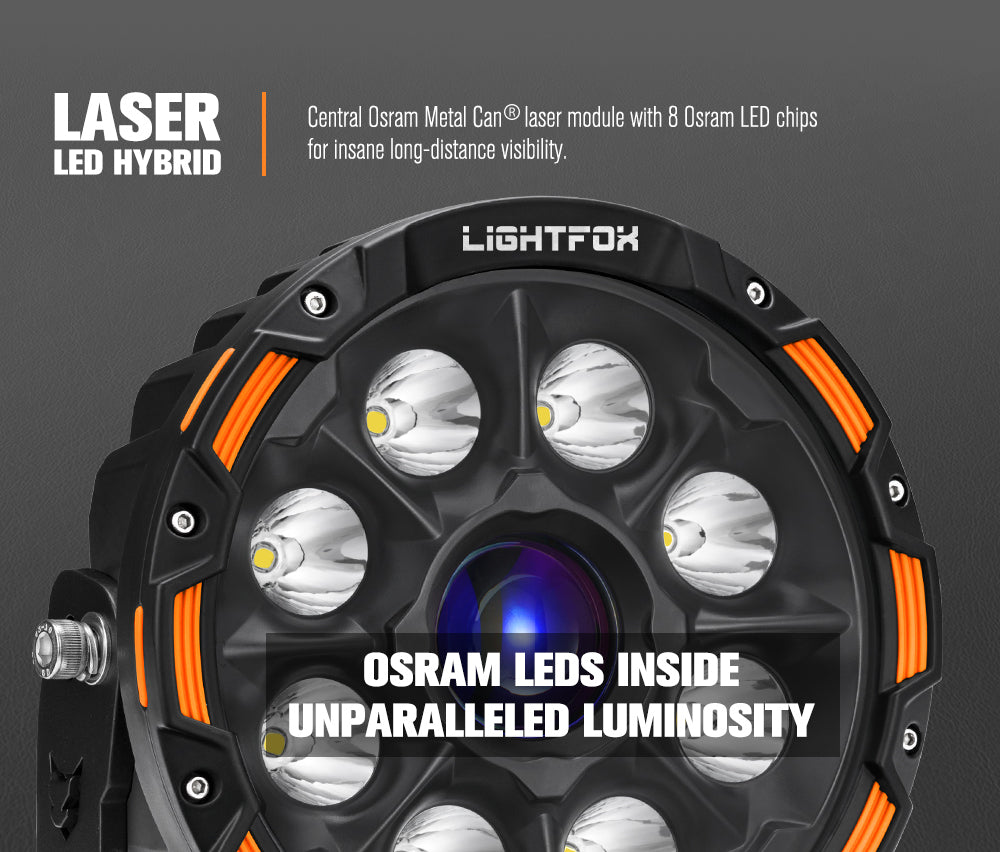

  • Laser/LED Combo: Featuring OSRAM Metal Can® laser module and 5050 LEDs, our lights deliver 15,046lm (pair) with 5° hyperspot and 15° spot beams for superior performance.
  • HyperSpot Geometry: Precisely structured to capture the most light possible from the OSRAM Metal Can®, our lights deliver 1Lux@2,226m (pair) for unparalleled visibility.
  • Vision Drive Tech: Our redesigned reflector cup features an improved reflection angle to make the most of the light produced.
  • Complete Clarity: Enjoy complete clarity in poor conditions with our 5,700 Kelvin lighting. This stunning clarity helps reduce eye fatigue and provides optimal visibility.
  • Indestructible Strength: Our Lightfox laser LED driving spot lights boasts aluminum housing, AkzoNobel powder coating, anti-scratch PC lens for unbeatable toughness.
  • Insanely Robust Bracket: 12mm thick die-cast aluminum with powder coating resists UV rays, corrosion, rust, and even the most brutal impacts without cracking.

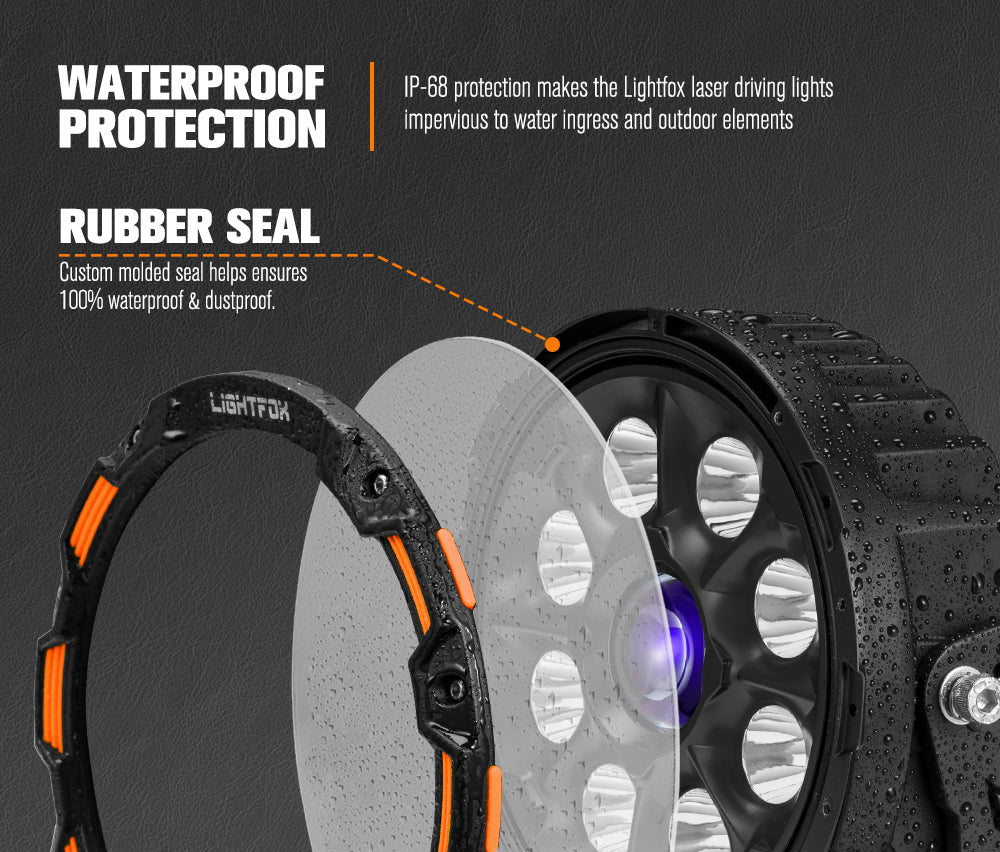

  • Waterproof Protection: With an IP68 rating, our Lightfox laser LED driving lights are impervious to water ingress and other outdoor elements.

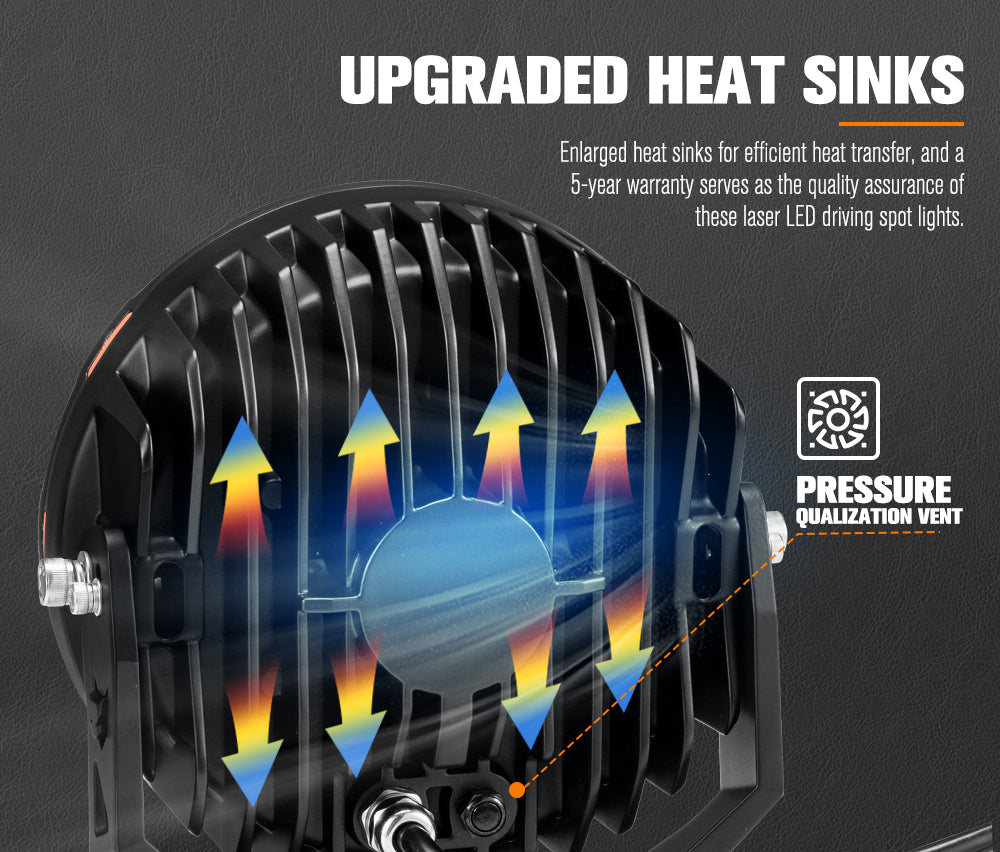

  • Protection Guaranteed: Our laser driving lights are designed with built-in protection against flickering and reverse polarity, and enlarged heat sinks for efficient heat transfer.

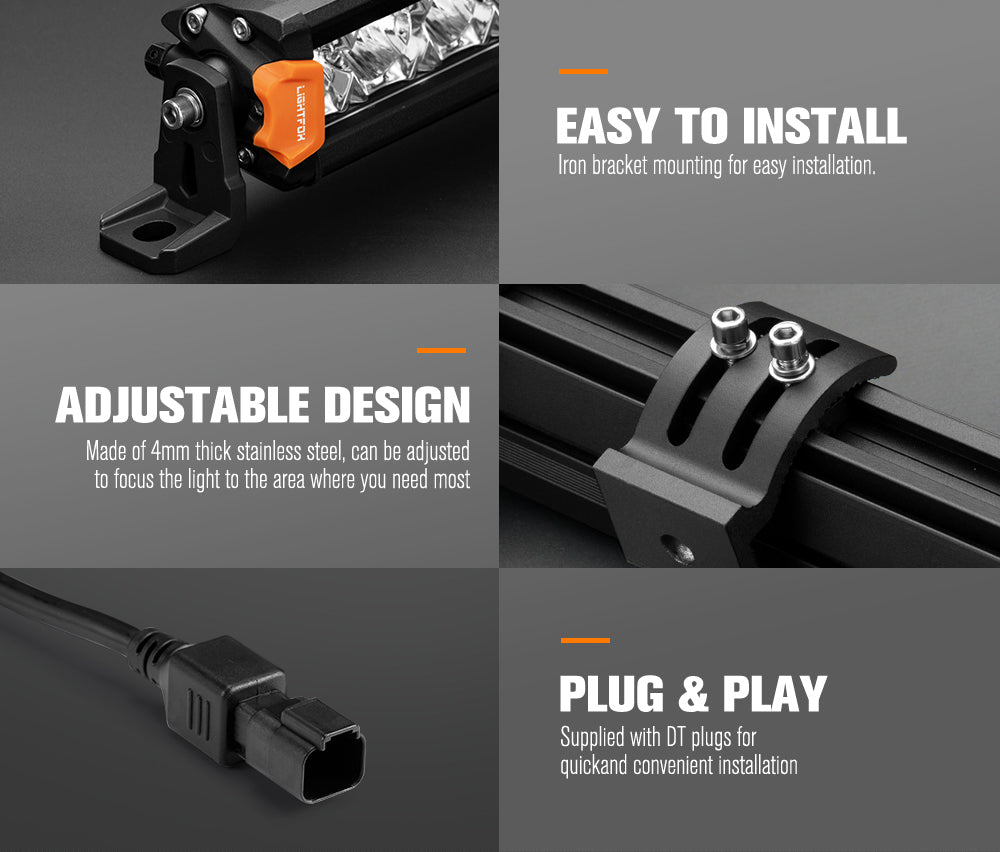

  • Easy Installation: Our laser LED driving spot lights come equipped with a wiring harness that includes waterproof DT plugs and a switch for easy installation.
  • Stylish Design: Our blacked-out structure offers a refined and subtle look, while the black and clear covers command attention wherever you go.

GTIN
0769891732567

Note: Please do not use 'P.O. Box' as your mailing address

Specifications

9inch Laser Light
Brand:Lightfox
Light Source:Laser/LED Hybrid
LUX Rating:1Lux@2,226m
Raw Lumens:15,046 (pair)

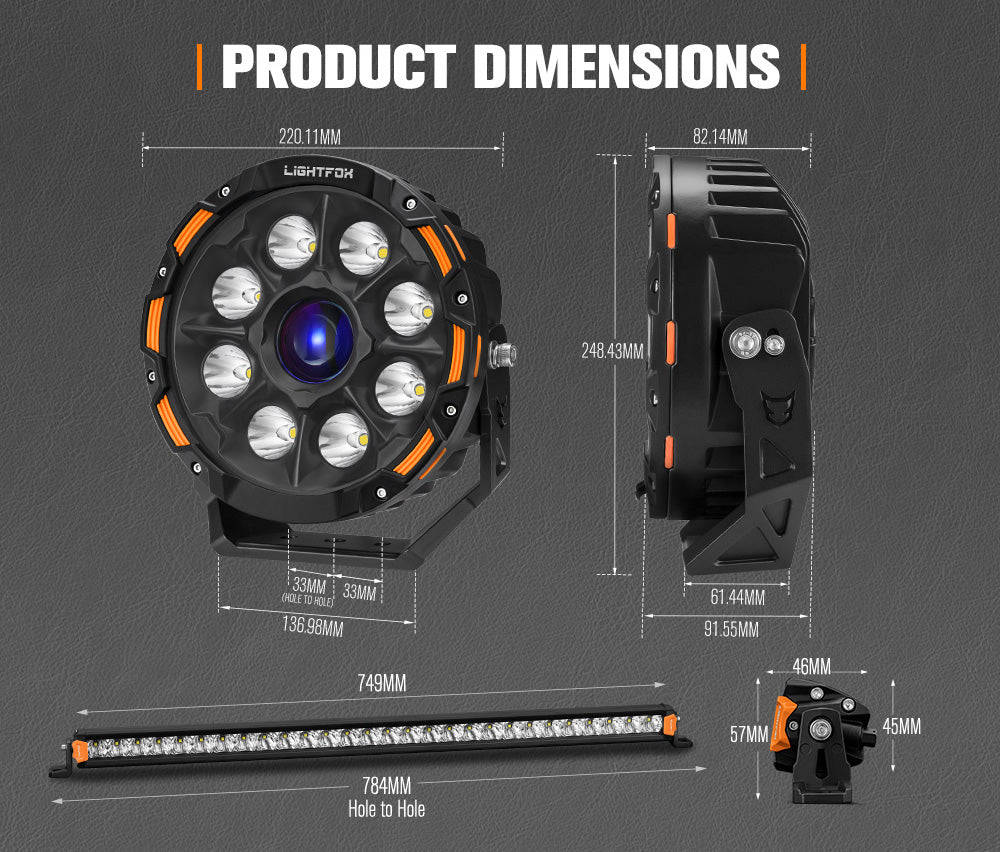

Dimension:9’’
LED Chip:10W*16 OSRAM 5050 (pair)
Laser Chip:OSRAM Metal Can®
Reflector Distribution:1 Laser + 8 Spot (single)
Hyperspot Beam:
Spot Beam:15°
Colour Temperature:5,700K
Housing Material:Aluminium
Heat Sink:Aluminium
Lens Cover:Strengthened PC
Bracket:Die-cast Aluminum
Sealing Material:UV Resin
Coating:AkzoNobel Powder
Theoretical Output:224W (pair)
Amp Draw:15.56A@14.4V (pair)
Relative Light Intensity:78% (150°C)
Waterproof:IP68 Rating
Voltage Range:12~30V
Expected Lifespan:50,000 Hours
Operating Environment:-40 - 150°C
Package Dimension:52 x 34.5 x 16cm
Package Weight:8.05kg
28inch Single Row Light Bar
Bulb Type:LED
Chip:5W*28 OSRAM OSLON
Theoretical Output:140W
Housing & Heat Sinks:Aluminum
Lens:Strengthened PC
Coating:AkzoNobel Powder
Sealing Material:UV Resin
Side Bracket:Forged Iron
Bottom Bracket:Aluminum
Theoretical Output:140W
Raw Lumens:17,612LM
Lux Rating:1Lux@494m
Color Temperature:5,500K
Reflector Distribution:8 Flood + 12 Spot + 8 Flood
Spot Beam:13°
Flood Beam:60°
Amp Draw:8.6A@12V
Expected Lifespan:50,000 Hours
Relative Light Intensity:78% (150°C)
Operating Temperature Range:-40°C (-40°F) ~ 150°C (302°F)
Waterproof:IP-68 Rating
Product Dimension (With Bracket):L78 x W4.5 x H6 cm
Package Size:77 x 7.5 x 7.5cm
Gross Weight:1.7kg

Package Includes

  • Pair Lightfox 9" Laser/LED Driving Lights
  • 2 x Clear Protective Covers & 2 x Blackout Protective Covers For Driving Lights
  • 2 x Mounting Brackets For Driving Lights
  • 2 x Rubber Pads For Driving Lights
  • 1 x Lightfox 28” LED Single Row Light Bar
  • 2 x Side Mountes & 2 x Bottom Mounts For Light Bar
  • 4 Pairs Colour Caps For Light Bar
  • 2 x Wiring Harness
  • 2 x User Manual
  • 2 Sets Of Mounting Hardware

Warranty

5 Years Warranty
