Lightfox 9 inch Osram Laser LED Driving Lights + 20 inch Single Row LED Light Bar + Wiring Kit
Lightfox 9 inch Osram Laser LED Driving Lights + 20 inch Single Row LED Light Bar + Wiring Kit
SKU: LF-DL-9LAS*2+LF-LB-20SR+BPWK-2WAY-DT-SUN
$608.95
- 0
Product Description
There is nothing that will give you as much distance of light than our laser driving light.
The centre laser assembly is structured into a precise optical lenses, Hyperspot Geometry, to capture the maximum luminous flux from Osram Metal Can® laser chip: 1Lux@2,226m(pair), and precisely directs it to the area to be illuminated. The surrounding parabolic reflectors are fitted with Osram 5050 LEDs and Vision Drive Tech that excel in luminosity: 15,046lm(pair). With 5° hyperspot beam and 15° spot beam, you’ll be able to see sharp turns with plenty of time to react.
4mm stainless steel bracket, AkzoNobel powder coated aluminum housing and strengthened PC lens ensure that whatever rough terrain you take these laser LED driving spot lights through, they are built tough to handle any challenges. The laser driving lights are IP68 rated so you can use them in any climates. 5,700 Kelvin is the best light to see the contrast of objects. Blacked-out structure commands attention wherever you go!
Features
GTIN
0769891732574
Features

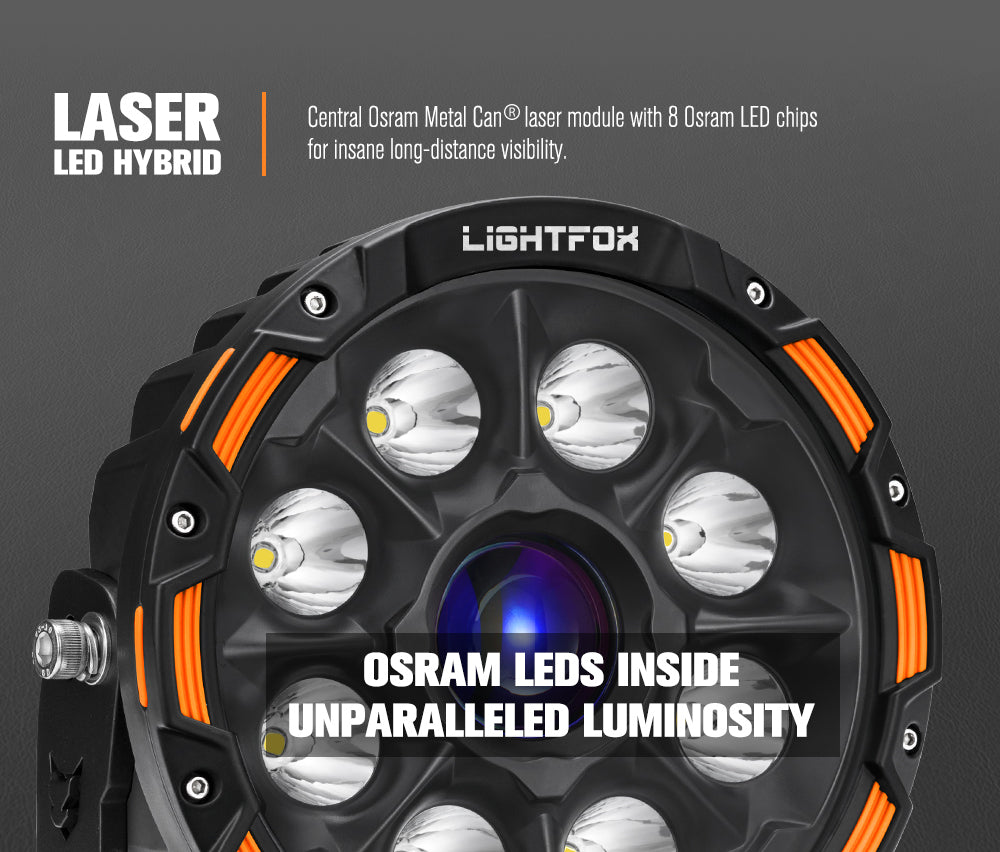

- Laser/LED Hybrid: Central Osram Metal Can® laser module with 8 Osram LED chips for insane long-distance visibility.
- HyperSpot Geometry: Structured to capture the maximum luminous flux from the Osram Metal Can® and precisely reflect it to the road ahead: 1Lux@2,226m(pair).
- Vision Drive Tech: Redesigned reflector cup with enhanced reflection angle to make most of the light produced.
- Ultra Vision: 5° hyperspot beam and 15° spot beam of the laser driving lights are for complete visibility with Osram 5050 LEDs that deliver 15,046lm(pair).
- Complete Clarity: 5,700 Kelvin offers stunning clarity against poor conditions with reduced eye fatigue.
- Built TOUGH: AkzoNobel powder protects the aluminum housing from UV exposure and corrosion, and 4mm thick stainless steel bracket is insanely tough.

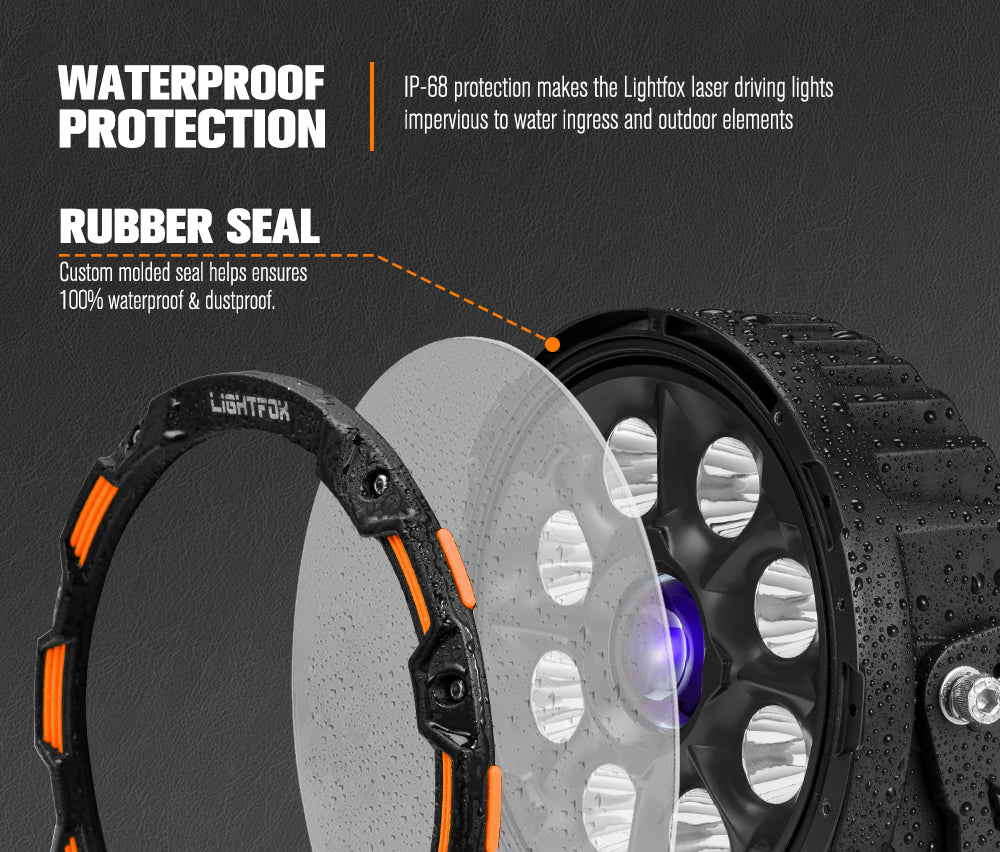

- Waterproof Protection: IP-68 protection makes the Lightfox laser driving lights impervious to water ingress and outdoor elements.
- Optimally Engineered: Built-in protection of these laser LED driving lights eliminates short circuit and reverse polarity.
- Stylish Design: Blacked-out structure for a more refined and subtle look, black and clear covers command attention wherever you go.
- Longer Lifespan: Enlarged heat sinks for efficient heat transfer, and a 5-year warranty serves as the quality assurance of these laser LED driving spot lights.
GTIN
0769891732574
Note: Please do not use 'P.O. Box' as your mailing address
Specifications
9inch Laser Light | |
Brand: | Lightfox |
Light Source: | Laser/LED Hybrid |
LUX Rating: | 1Lux@2,226m |
Raw Lumens: | 15,046 (pair) |

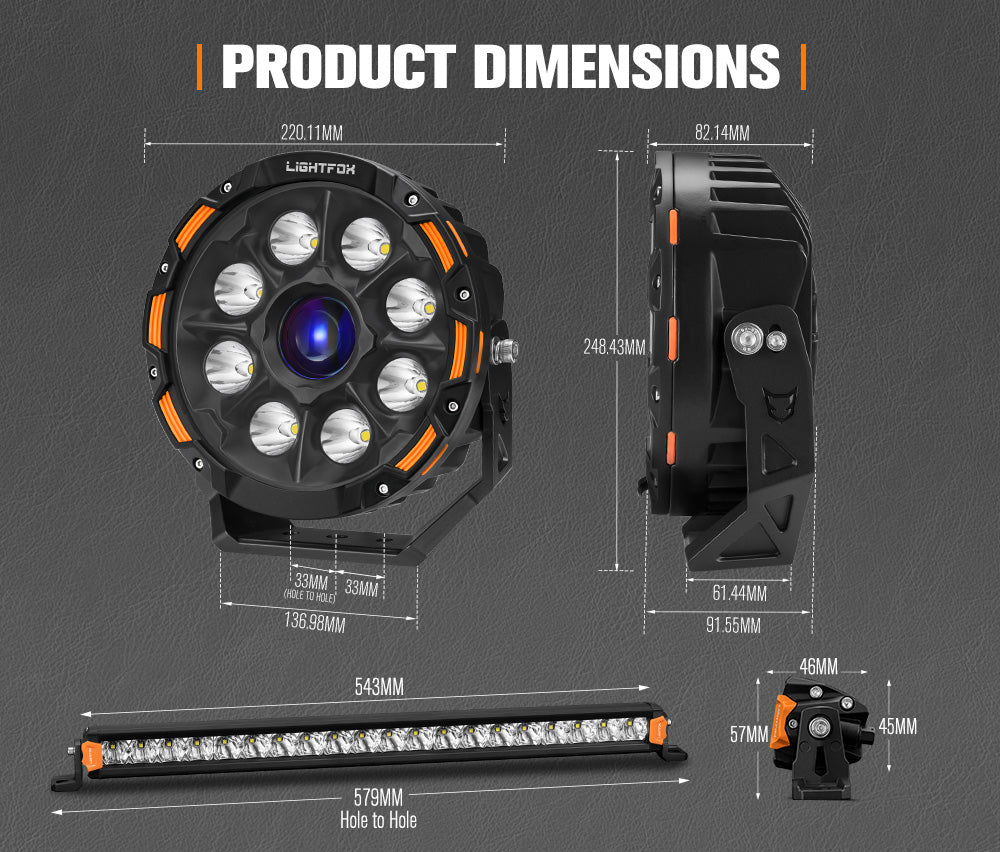

Dimension: | 9’’ |
LED Chip: | 10W*16 Osram 5050 (pair) |
Laser Chip: | Osram Metal Can® |
Reflector Distribution: | 1 Laser + 8 Spot (single) |
Hyperspot Beam: | 5° |
Spot Beam: | 15° |
Colour Temperature: | 5,700K |
Housing Material: | Aluminium |
Heat Sink: | Aluminium |
Lens Cover: | Strengthened PC |
Bracket: | Stainless Steel |
Sealing Material: | UV Resin |
Coating: | AkzoNobel Powder |
Theoretical Output: | 224W (pair) |
Amp Draw: | 15.56A@14.4V (pair) |
Relative Light Intensity: | 78% (150°C) |
Waterproof: | IP68 Rating |
Expected Lifespan: | 50,000 Hours |
Operating Environment: | -40 - 150°C |
Package Dimension: | 52 x 41.6 x 12.5cm |
Gross Weight: | 8.02kg |
20inch Single Row Light Bar | |
Bulb Type: | LED |
Chip: | 5W*20 OSRAM OSLON |
Theoretical Output: | 100W |
Housing & Heat Sinks: | Aluminum |
Lens: | Strengthened PC |
Coating: | AkzoNobel Powder |
Sealing Material: | UV Resin |
Side Bracket: | Forged Iron |
Bottom Bracket: | Aluminum |
Raw Lumens: | 12,580LM |
Lux Rating: | 1Lux@453m |
Color Temperature: | 5,500K |
Reflector Distribution: | 4 Flood + 12 Spot + 4 Flood |
Spot Beam: | 13° |
Flood Beam: | 60° |
Amp Draw: | 6.2A@12V |
Expected Lifespan: | 50,000 Hours |
Relative Light Intensity: | 78% (150°C) |
Operating Temperature Range: | -40°C (-40°F) ~ 150°C (302°F) |
Waterproof: | IP-68 Rating |
Product Dimension (With Bracket): | L57.5 x W4.5 x H6 cm |
Package Size: | 62 x 7.5 x 7.5cm |
Gross Weight: | 1.3kg |
Package Includes
- Pair Lightfox 9" Laser/LED Driving Lights
- 2 x Clear Protective Covers & 2 x Blackout Protective Covers For Driving Lights
- 2 x Mounting Brackets For Driving Lights
- 2 x Rubber Pads For Driving Lights
- 1 x Lightfox 20” LED Single Row Light Bar
- 2 x Side Mounts & 2 x Bottom Mounts For Light Bar
- 4 Pairs Colour Caps For Light Bar
- 2 x Wiring Harness
- 2 x User Manual
- 2 Sets Of Mounting Hardware
Warranty
5 Years Warranty
