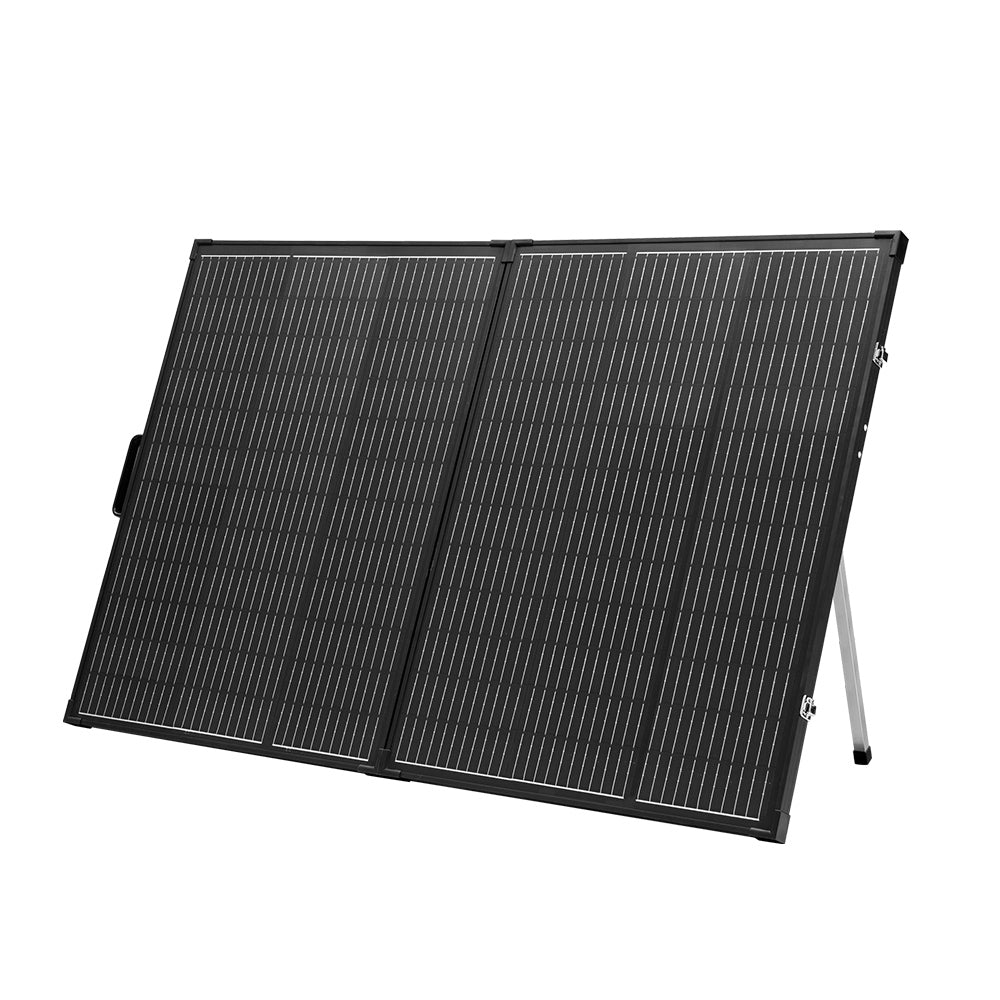

Atem Power 12V 160W Folding Solar Panel Blanket Kit Mono with Regulator

SKU: VASPFOLD-FLES-2R-AP-SUN-R1
Sale price$239.95

In Stock! Ship in 1 business day
 More payment options

30 Days Return

1 Year Warranty

100% Secure Transaction

FREE SHIPPING ZONE

We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.

Description

.
Features

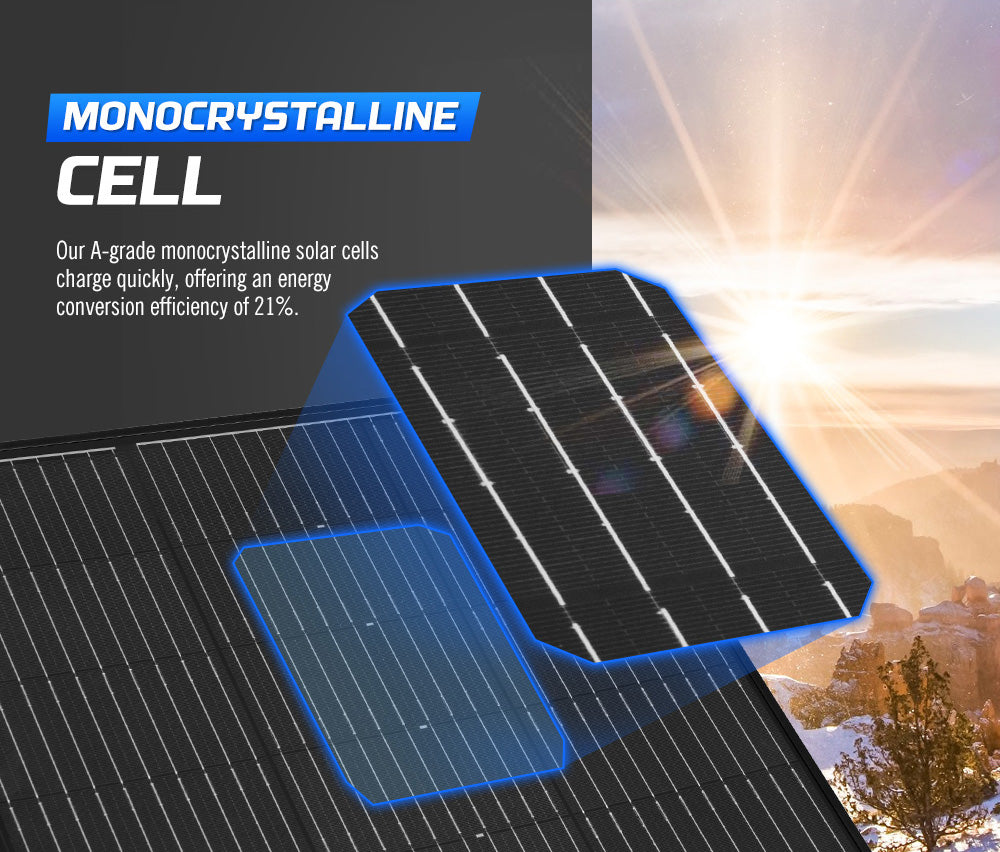

  • Monocrystalline Cell: Our A-grade monocrystalline solar cells charge quickly, offering an energy conversion efficiency of 21%.

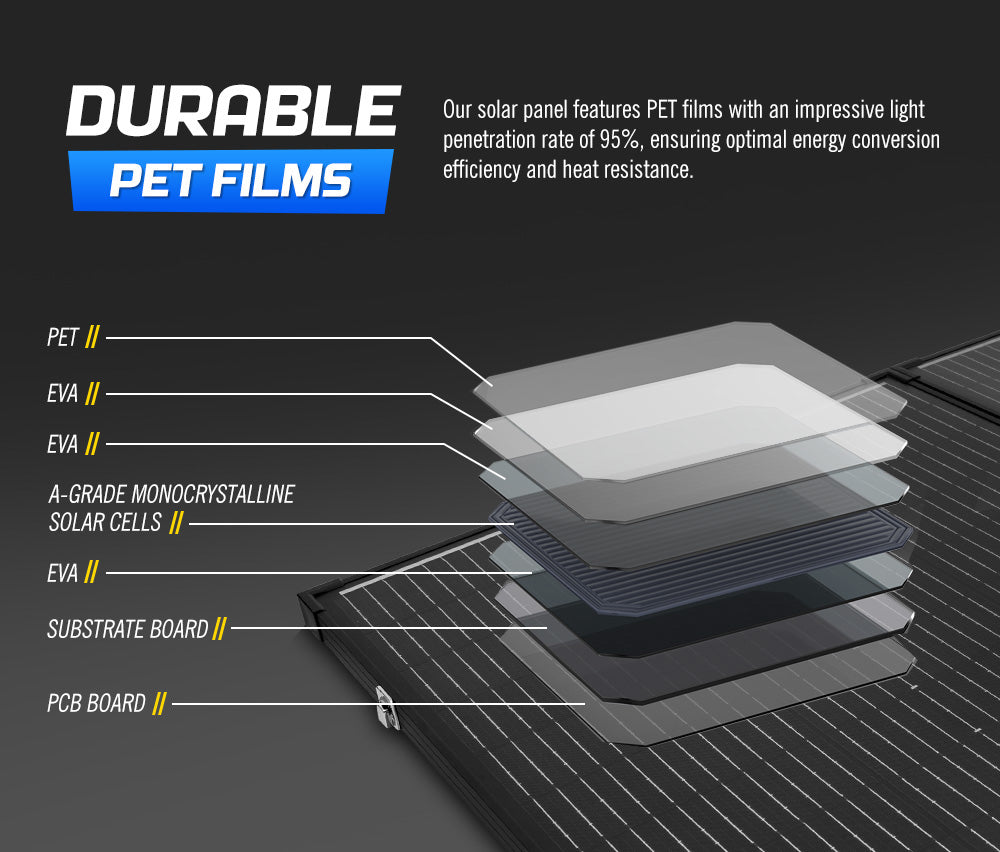

  • Durable PET Films: Our solar panel features PET films with an impressive light penetration rate of 95%, ensuring optimal energy conversion efficiency and heat resistance.
  • Diode Bypass Technology: Our diode bypass technology effectively reduces power loss due to shade and provides essential protection against overheating for shaded cells.

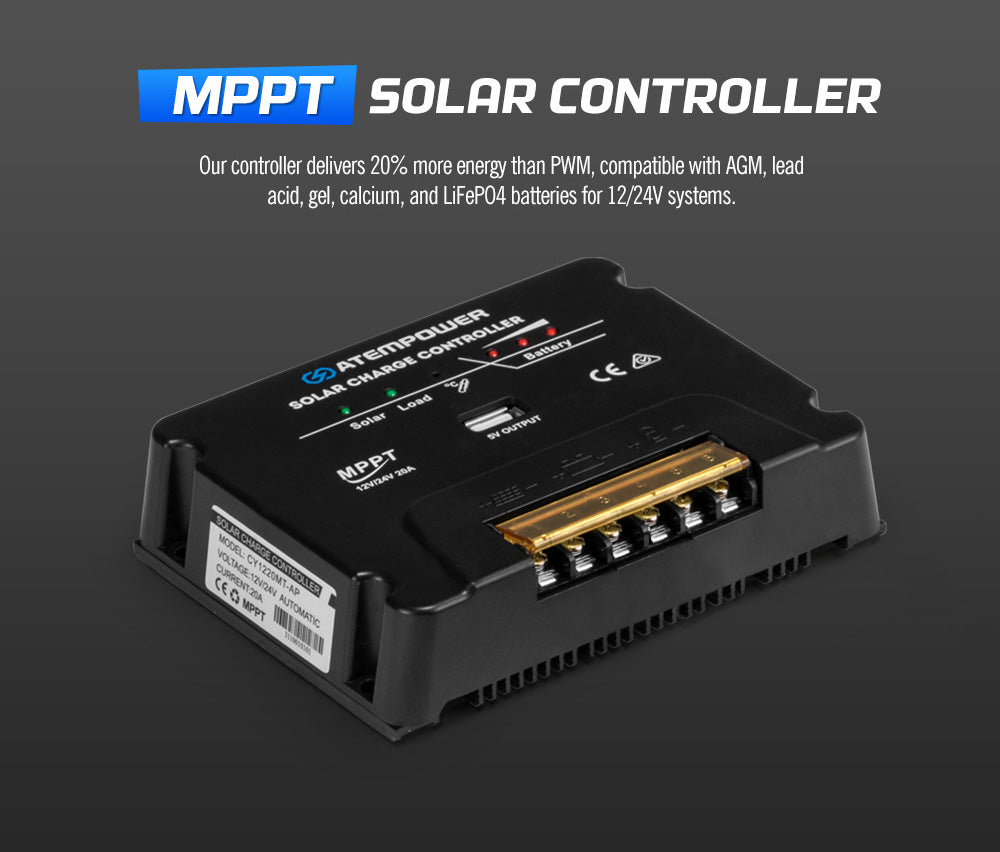

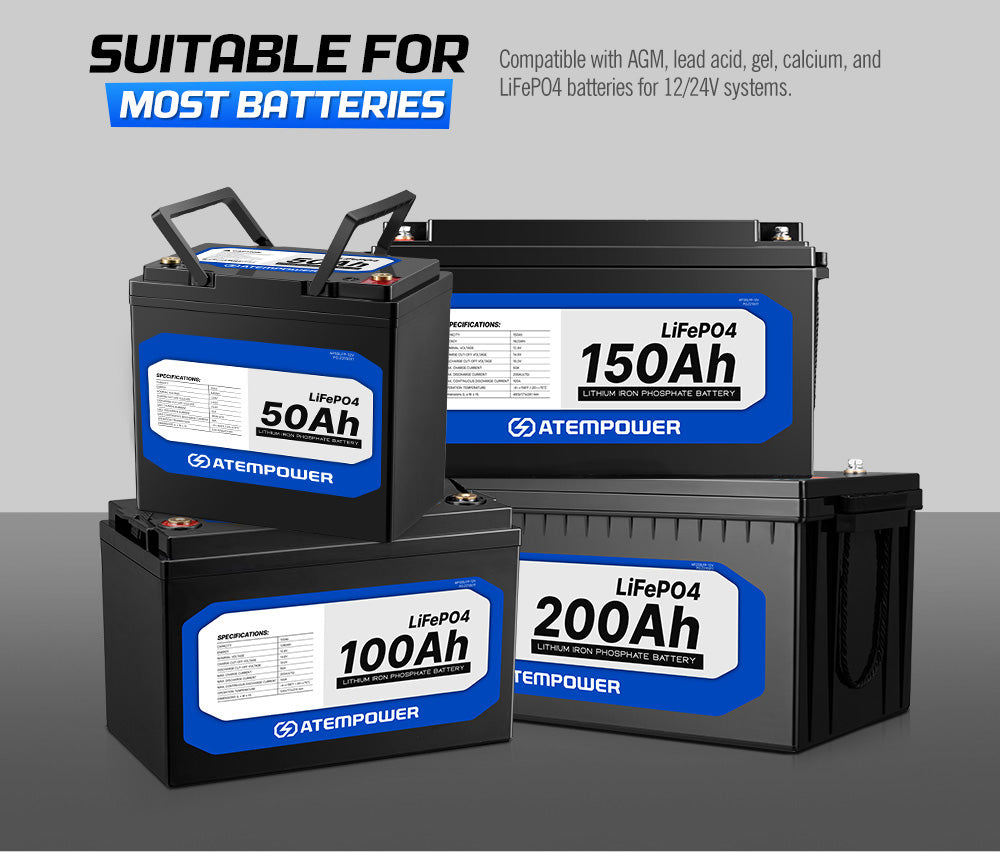

  • MPPT Controller Integrated: Our controller delivers 20% more energy than PWM, compatible with AGM, lead acid, gel, calcium, and LiFePO4 batteries for 12/24V systems.
  • USB Output: Our controller includes a USB-A port with an output of 5V/1A to charge your smartphones, tablets, digital cameras, and more.
  • Grab and Go: Take this foldable solar panel anywhere with its briefcase design and lightweight of only 5.9kg, featuring a sturdy carrying handle for easy transport.

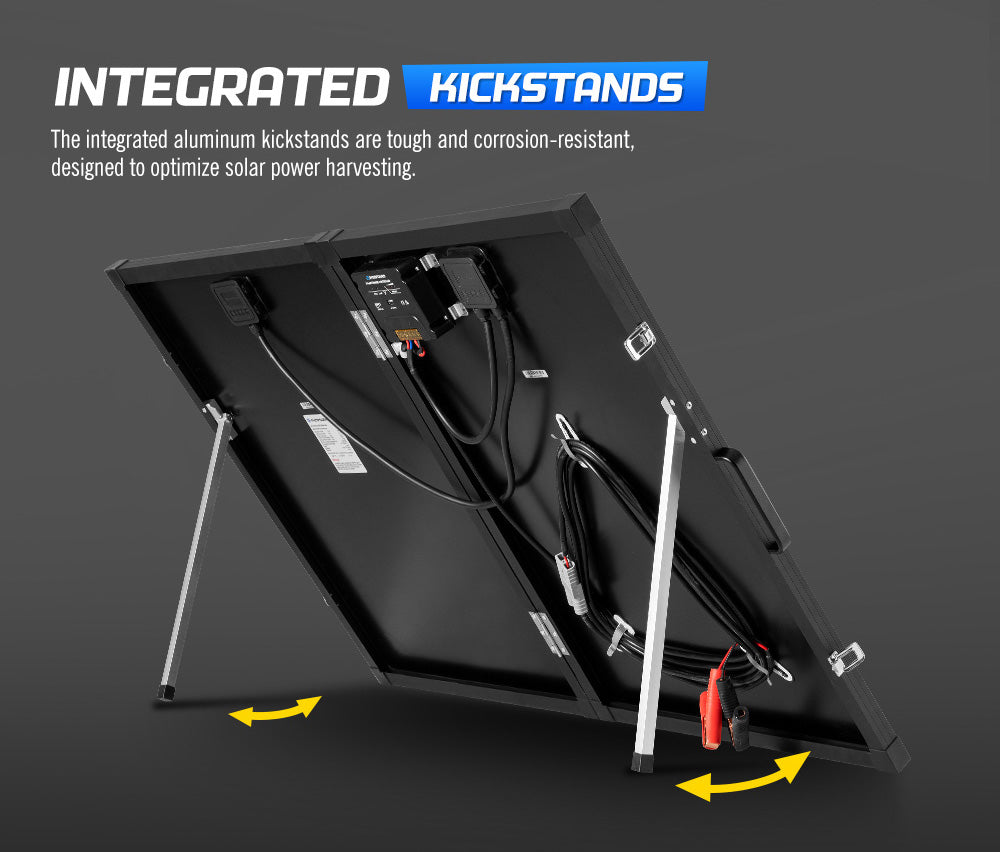

  • Integrated Kickstands: The integrated aluminum kickstands are tough and corrosion-resistant, designed to optimize solar power harvesting.

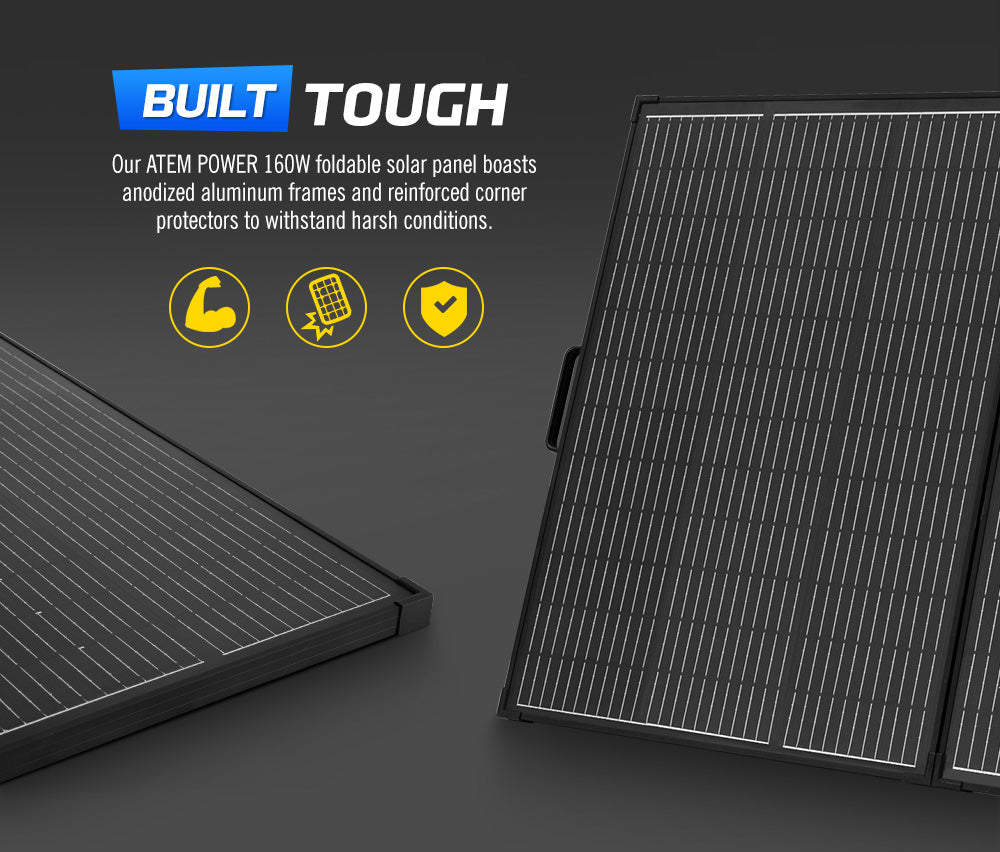

  • Built Tough: Our ATEM POWER 160W foldable solar panel boasts anodized aluminum frames and reinforced corner protectors to withstand harsh conditions.
  • No Interruptions: Enjoy hassle-free reconnecting with the auto-optimization function, ensuring an immediate connection when sunlight returns after an interruption.
  • Convenient Storage: Our panel comes with a storage bag, making it easy to store and transport. Whether you're on the go or keeping it at home, you’ll always have a solution.

GTIN
9356307002348

Note: Please do not use 'P.O. Box' as your mailing address

Specifications

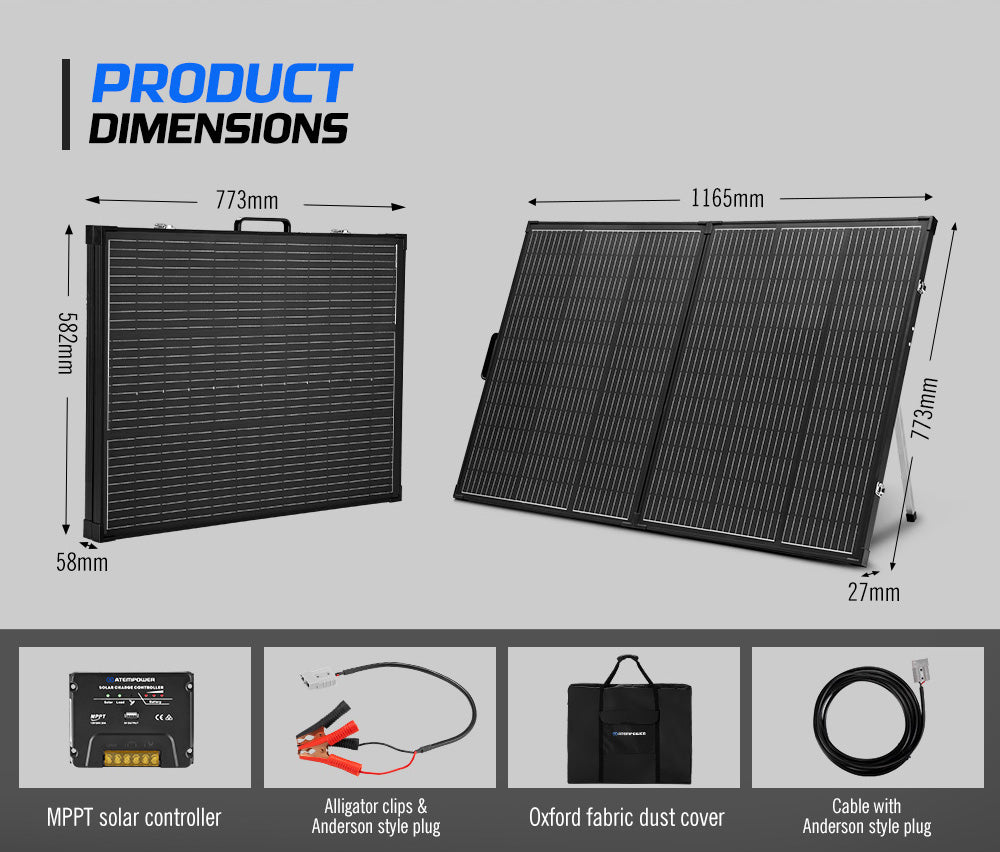

Folded Dimensions:773 x 582 x 58 mm
Unfolded Dimensions:1165 x 773 x 27 mm
Color:Black
Material:A-Grade Monocrystalline
Power:160W
Open-Circuit Voltage (VOC):22.4V
Short-Circuit Current (ISC):9.32A
Maximum Power Voltage (VMP):18.2V
Maximum Power Current (IMP):8.79A
Maximum System Voltage:1,000VDC
Connector Type:50A Anderson
Temperature Range:-40°C ~ 85°C
Power Tolerance:± 2%
Package Size:81.5cm x 66.5cm x 8cm
Paclage Weight:8.65kg
Controller:
Rated Charge Current:20A
Rated Discharge Current:20A
Voltage:12/24V
Maximum MPPT Efficiency:99%
Overload, Short Circuit Protection:≥1.5 Rated Current
No Load Current:<10mA
Overvoltage Protection:16V; x2/24V
Charge Cut-off Voltage:14.7V; x2/24V
Discharge Recovery Voltage:12V; x2/24V
Discharge Cut-off Voltage:10.8V; x2/24V
USB Output:5V/1A
Operation Temperature:-35℃~55℃

Package Includes

  • 1 x ATEM POWER 160W Solar Panel with MPPT Solar Controller
  • 1 x 450cm Cable with Alligator Clamps & 50A Anderson Plug
  • 1 x Carry Bag
  • 1 x User Manual

Warranty

1 Year Warranty
