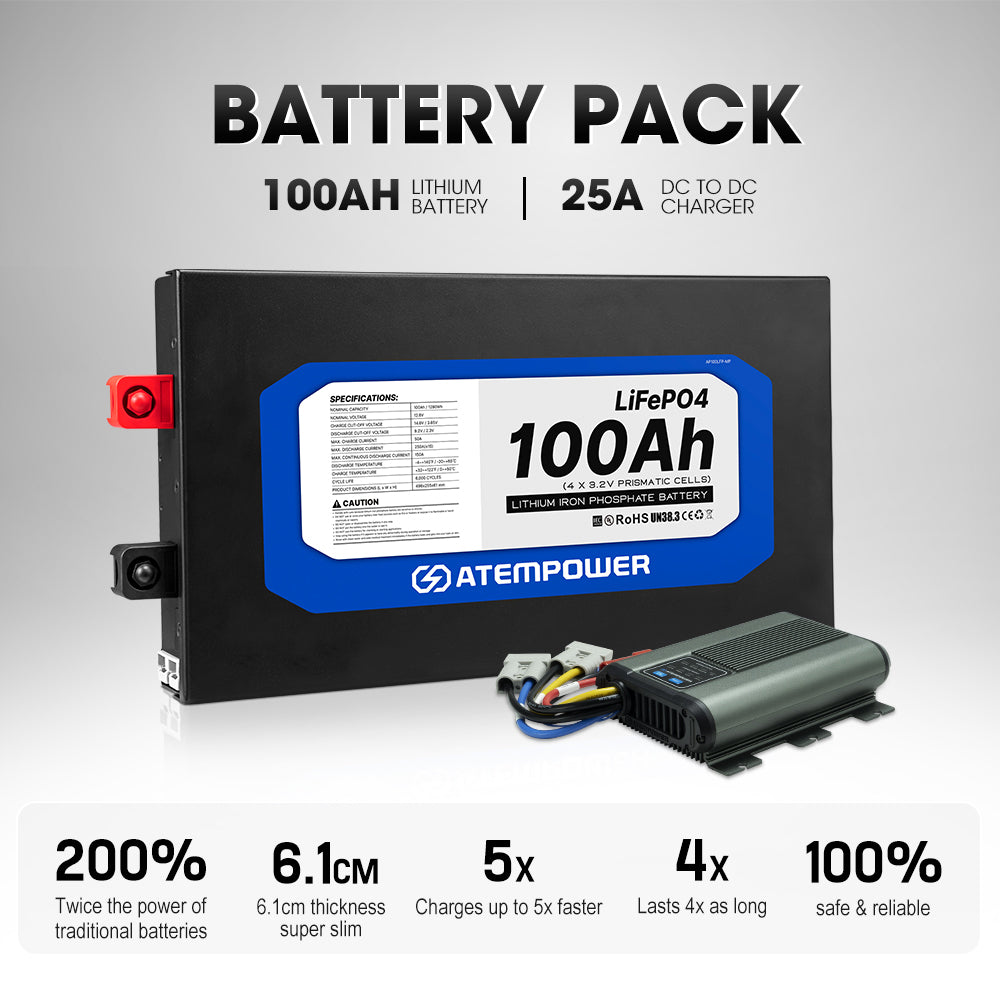

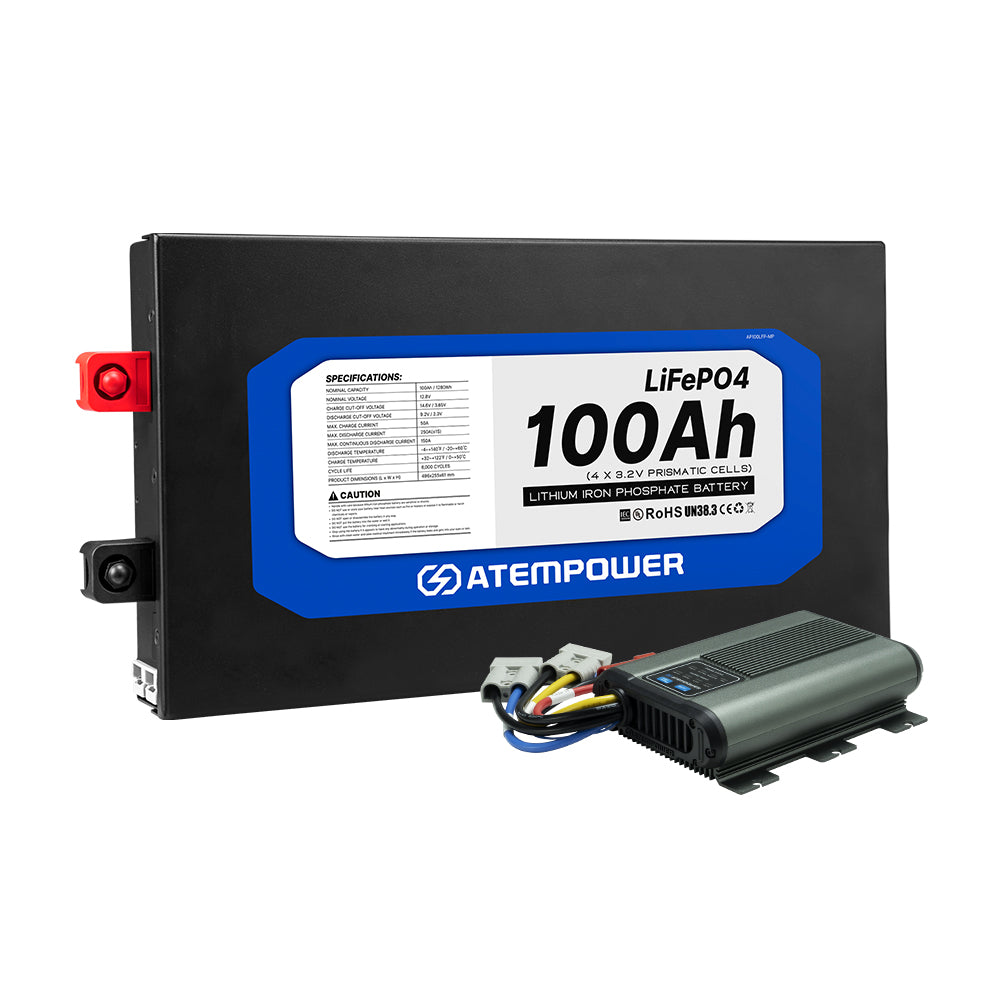

Atem Power 12V 100Ah Slimline Lithium Battery + 12V 25A DC to DC Battery Charger
Atem Power 12V 100Ah Slimline Lithium Battery + 12V 25A DC to DC Battery Charger
SKU: AP-LFP-BLK-100-MP+VABG007A-SUN
$1,339.95
- 0
Product Description
With a profile as slim as 5cm, ATEM POWER 100Ah slimline lithium battery is your ultimate solution for limited space installation, whether tucked behind or under a seat or at the back of your 4x4, providing unmatched power where conventional LiFePO4 batteries won't fit.
Crafted with A grade prismatic cells, our slimline lithium iron battery excels in energy density and consistency, serving as a reliable energy source for various applications, including camping fridges, 12V lights, and high power appliances such as electric ovens and space heaters. Our slimline lithium iron phosphate battery is perfect for use with caravans, camper trailers, motor homes and 4x4. The SPCC enclosure, manufactured to Japanese standard JIS G 3141, is 20% stronger than typical hot rolled steel to protect battery cells. Our lithium ion slim battery provides impressive lifespan of 2,000 cycles with 80~90% usable capacity, delivering exceptional longevity and optimal performance.
Features
GTIN
9356307008395
Features
- Remarkably Slimline: Measuring as thin as 5cm, ATEM POWER 100Ah slimline lithium battery easily fits behind or underneath seats, or at the rear of your 4x4.
- SPCC Enclosure: The Japanese standard SPCC steel with glossy finish offers 20% more strength than standard hot rolled steel for superior cell protection.

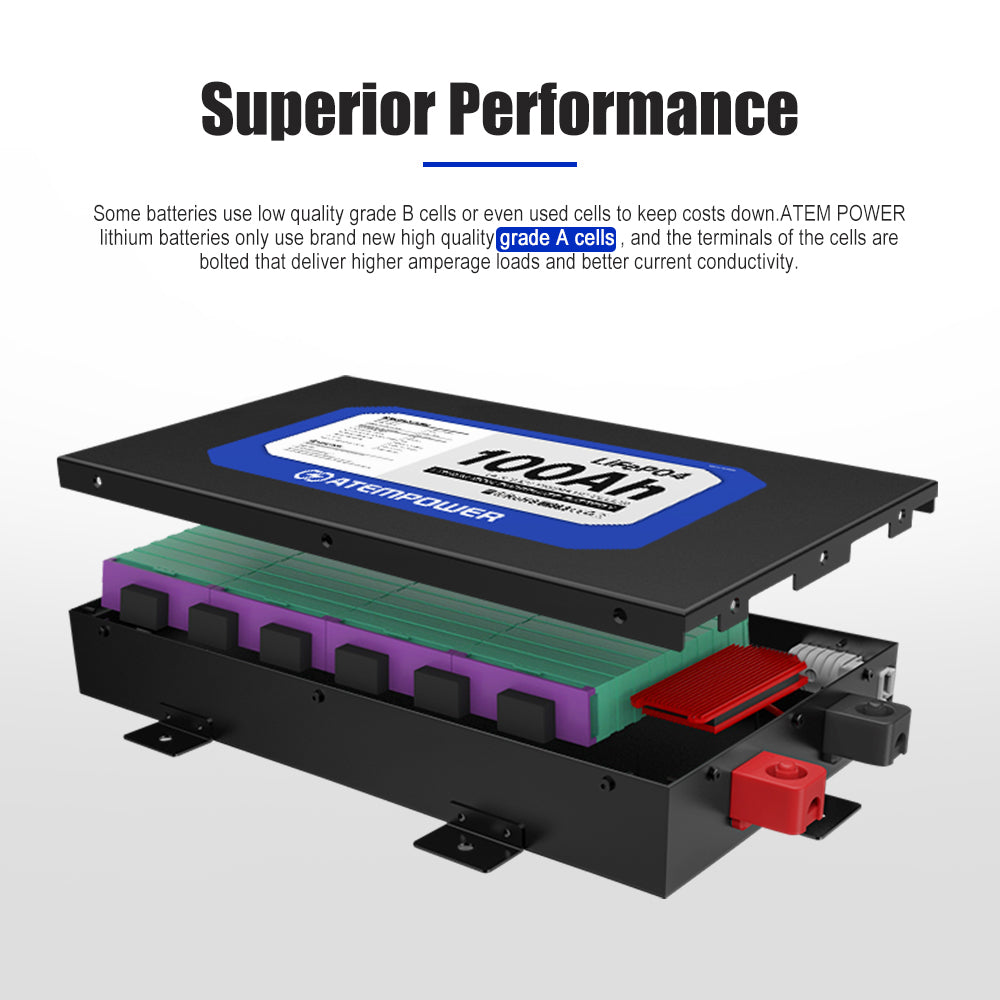

- A Grade Cell: Crafted with A grade prismatic cells, our LiFePO4 battery boasts higher energy density and consistency, while being more resistant to vibration-induced failures.

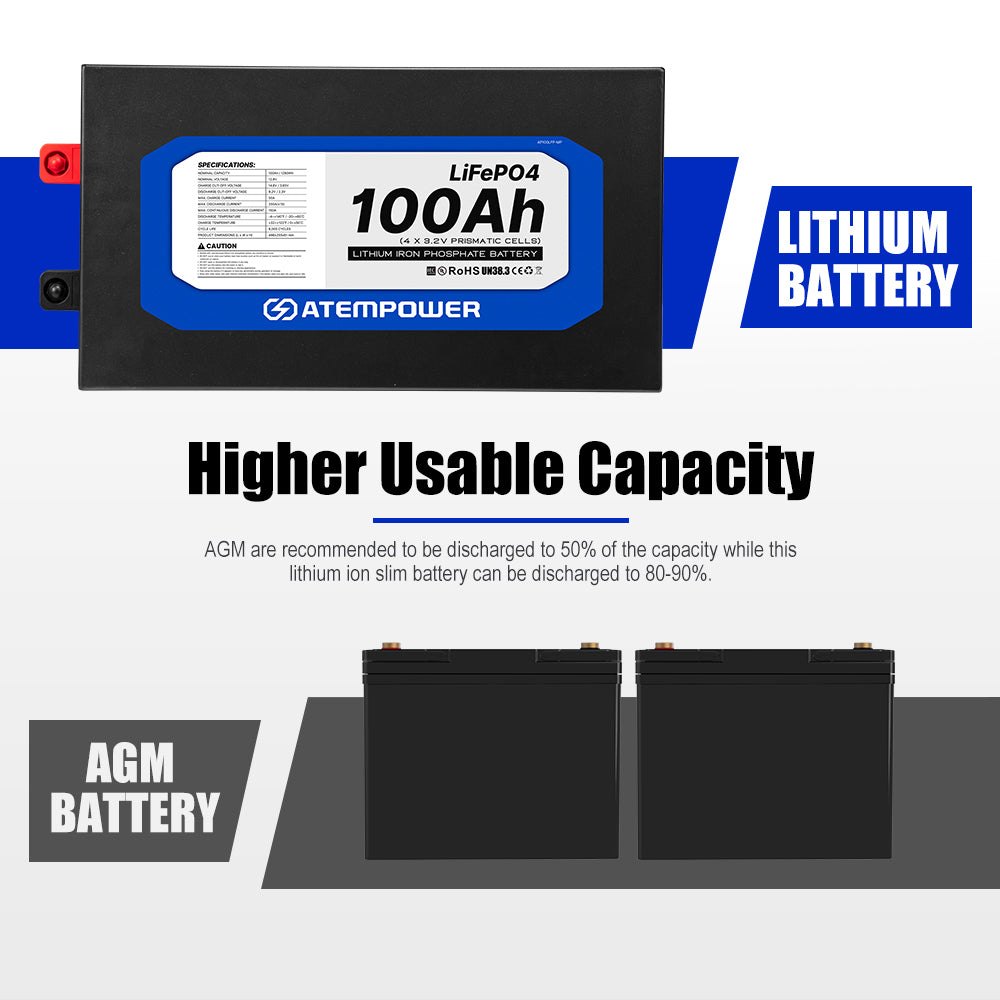

- Extended Lifespan: Our LiFePO4 battery provides impressive 2,000 rounds of usage with 80~90% usable capacity, significantly outlasting its lead-acid counterparts.

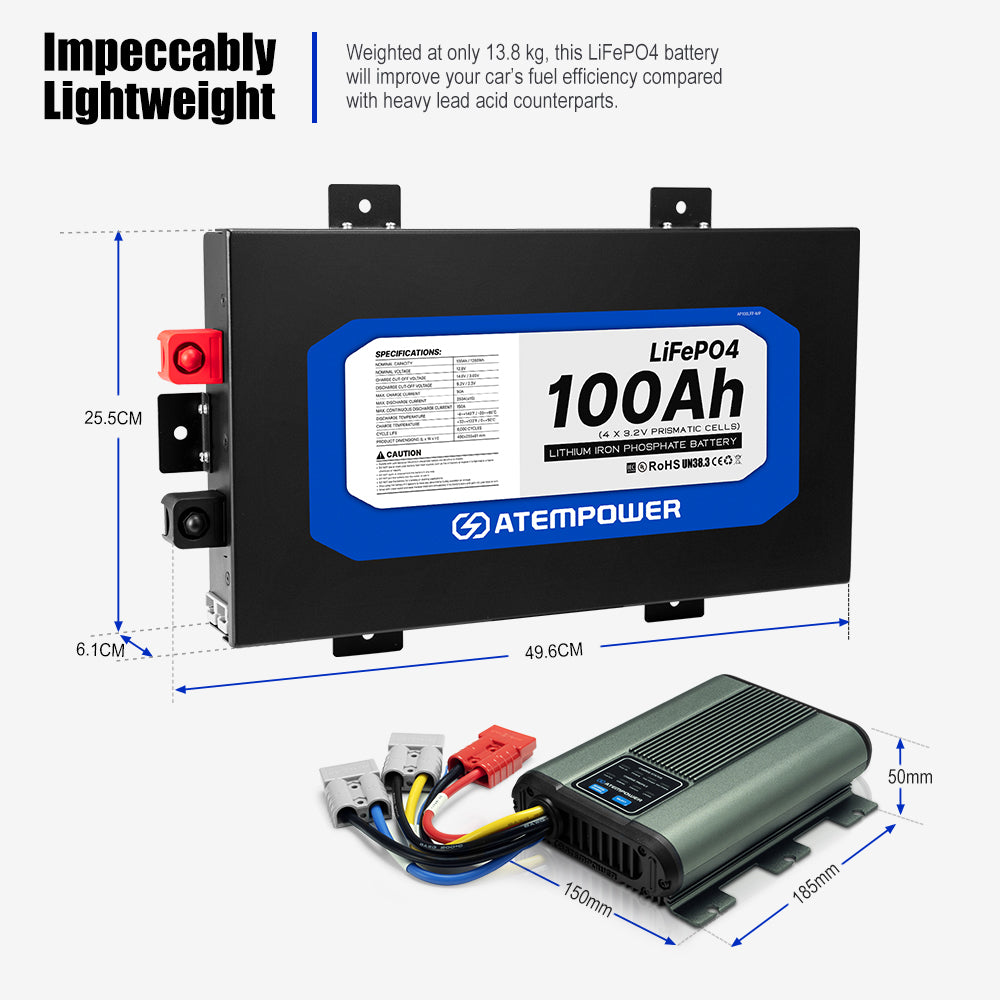

- Lightweight Design: Our slimline lithium iron battery delivers twice the power of a comparable AGM battery with half the weight, even within a SPCC steel enclosure.
- High Power Output: With max 200A (≤7S) / continuous 100A discharge current, our LiFePO4 battery powers high wattage appliances like microwaves or coffee machines.
- Rapid Charging: Featuring low internal resistance, our LiFePO4 battery boasts swift charging capability for a quick recharge process and shorter downtime between uses.
- High Quality BMS: It offers precise voltage and temperature monitoring with smart cell balancing for enhanced reliability, and low self-discharge rate for sustained charge.
- Real Time Monitoring: The volt meter displays the capacity and voltage, while the dual 120A Anderson style plugs facilitate high current charging and discharging.
- Flexible Configurations: You can connect two slimline lithium iron phosphate batteries in series or parallel to achieve your desired voltage and amp-hour capacity.
GTIN
9356307008395
Note: Please do not use 'P.O. Box' as your mailing address
Specifications
Lithium Battery | |
Brand: | ATEM POWER |
Colour: | Black |
Nominal Capacity: | 100Ah |
Nominal Voltage: | 12.8V |
Life Cycle: | 2,000 Cycles |
Case Material: | SPCC Steel, According to Japanese Standard JIS G 3141 |
Max. Continuous Discharge Current(25°C): | 100A |
Max. Charge Current: | 50A |
Max. Discharge Current(≤7S): | 200A(≤7S) |
Internal Impedance: | ≤10mΩ |
Charge Temperature: | 0°C~60°C |
Discharge Temperature: | -20~70°C |
Standard Operation Temperature: | -20~70°C |
Self-discharge Rate(per month): | 2% |
Max. Modules in Series/Parallel: | 2S/2P |
Package Dimension: | 68cm x 37.5cm x 13.5cm |
Gross Weight: | 18.35kg |

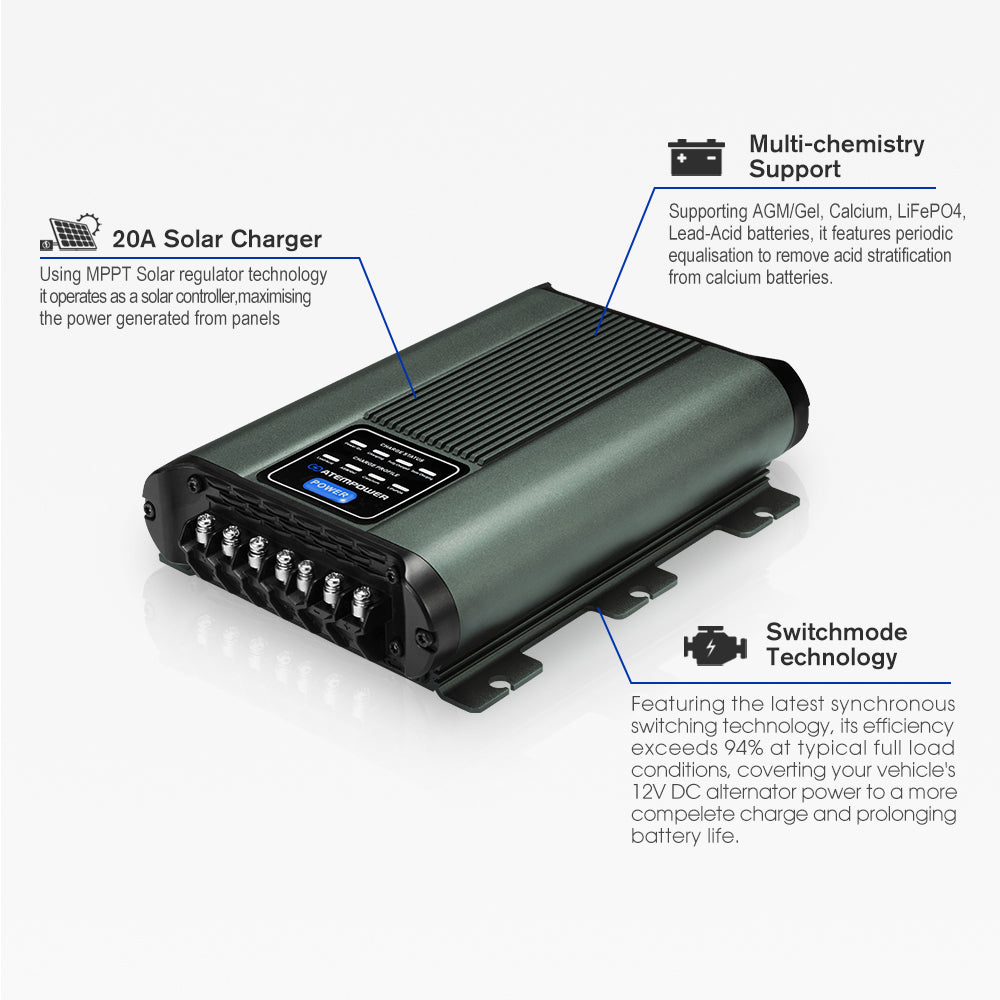

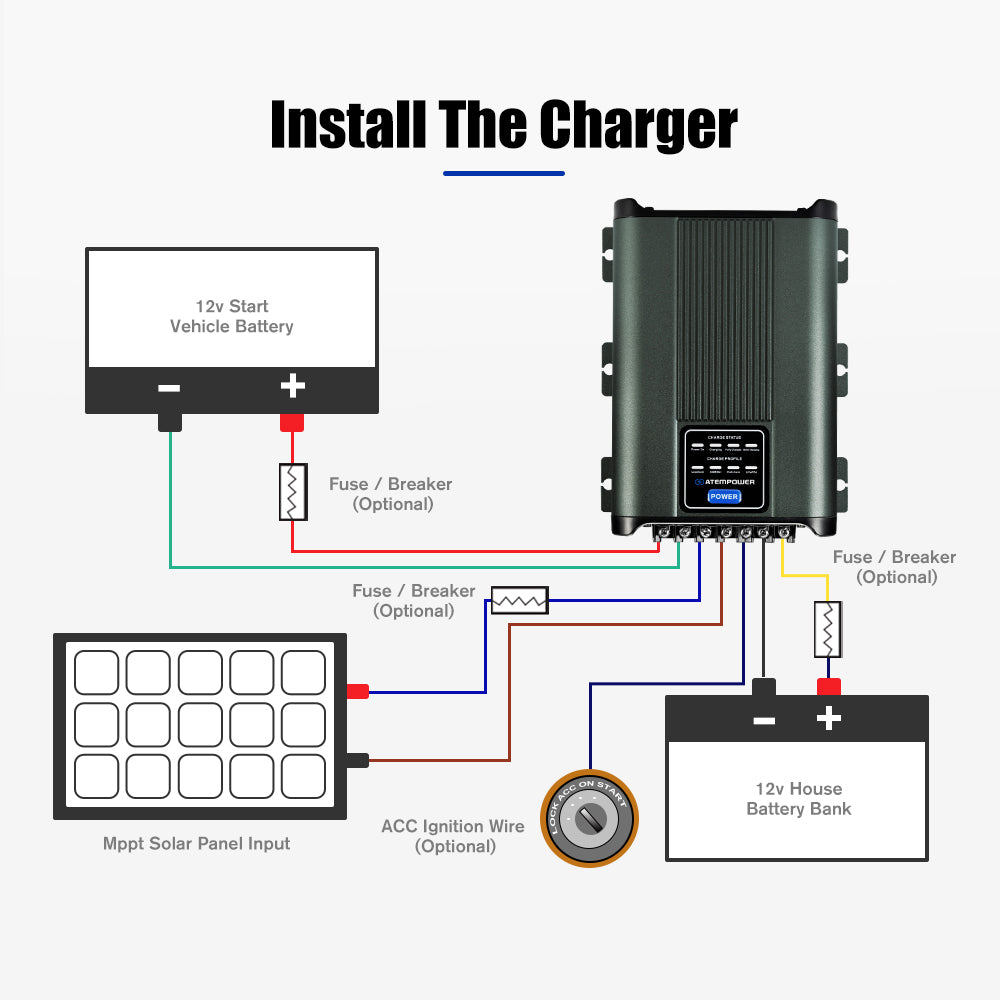

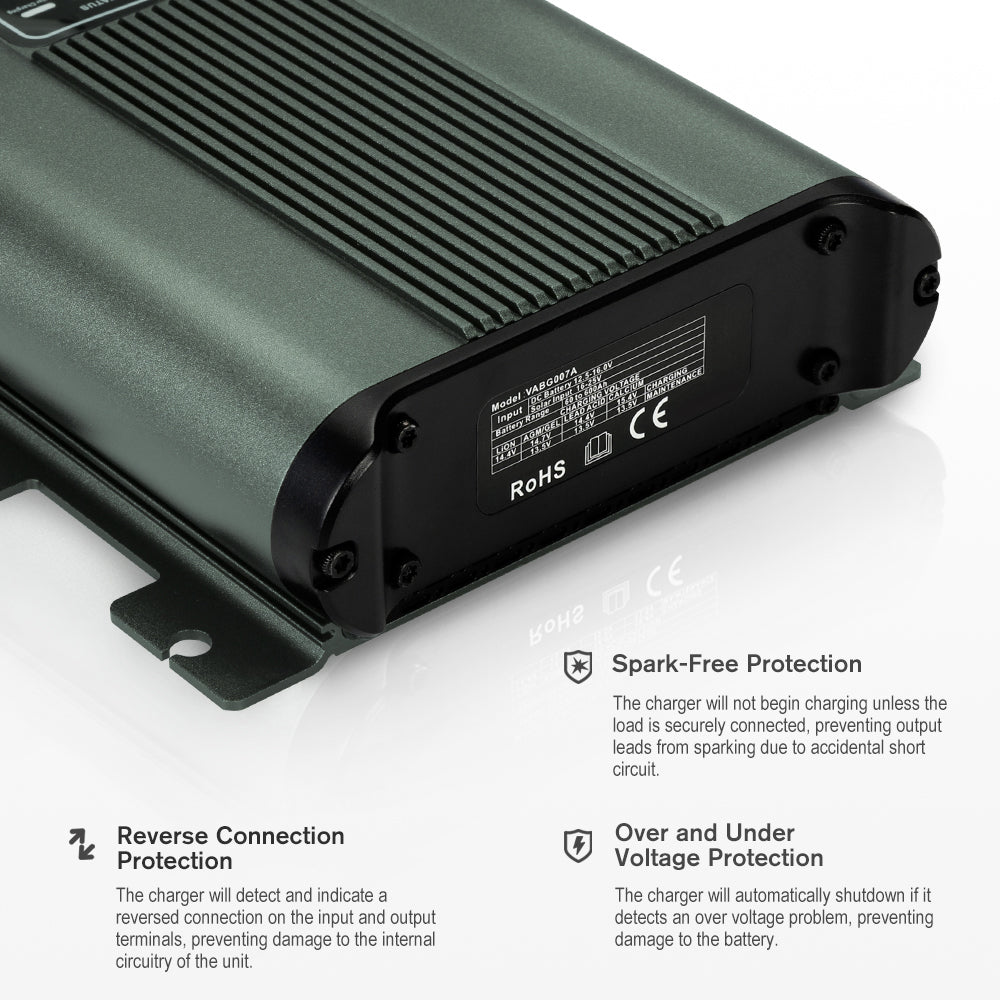

25A DC-DC Battery Charger | |
DC Input Voltage Range: | 11V~24V |
Solar Input Voltage Range: | 9V~30V |
Max. Input Current: | 28A |
Output Voltage: | 0~15.4V |
Max. Output Power: | 385W |
Rated Output Current: | 25A |
Standby Current: | <10mA |
Charging Profile: | 4 Stages |
Battery Compatibility: | Lead Acid, AGM, Calcium, LiON(LiFePO4) |
IP Rating: | IP-54 |
Operational Temperature: | -20℃~45℃ |
Storage Temperature: | -40℃~60℃ |
Humidity: | 0%~90% |
Package Size: | 316mm(L) x 240mm(W) x 63mm(H) |
Package Weight: | 1.255Kg |
