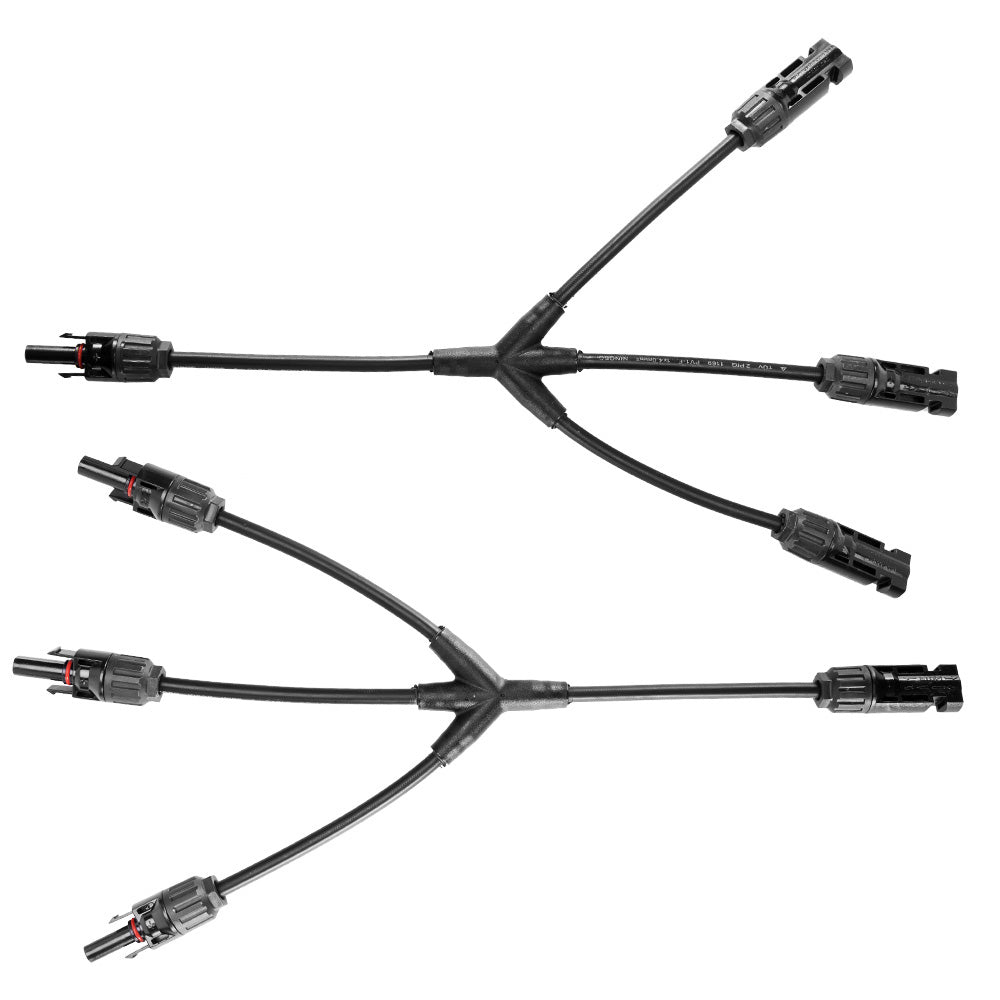

3Y Branch Connector Adapter Cables 3Y Solar Cable Connectors IP67 PV

SKU: ESMC006A-SUN-R1
Sale price$9.95
In Stock! Ship in 1 business day

Free Delivery*

ⓘ

30 Days Return

12 months warranty

100% Secure Transaction

FREE SHIPPING ZONE

We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.

Description

.
Features
  • Protection Class:2
  • Rated Current:22(2.5 mm),30A(4,6 mm)
  • Protection Degree:IP2X,unmated;IP67,mated
  • Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
  • Compatible with PV cables with different insulation diameters
  • Resistance of extra high & low temperature and fireproof
  • Load capability with big current and high voltage
  • Locking system Snap in

GTIN
9356307000788

Note: Please do not use 'P.O. Box' as your mailing address

Specifications

Rate Voltage:1000V
Rated Current:30A(4mm2,6mm2)
Waterproof Rate:IP 67
Test Voltage:6000V(50Hz)
Insulation material:PPO
Contact material Copper:Sliver plated
Safe Class :2
Flame Class:UL94-V0
Contact resistant of plugg Connectors: ≤5mΩ
Insertion force:≤50N

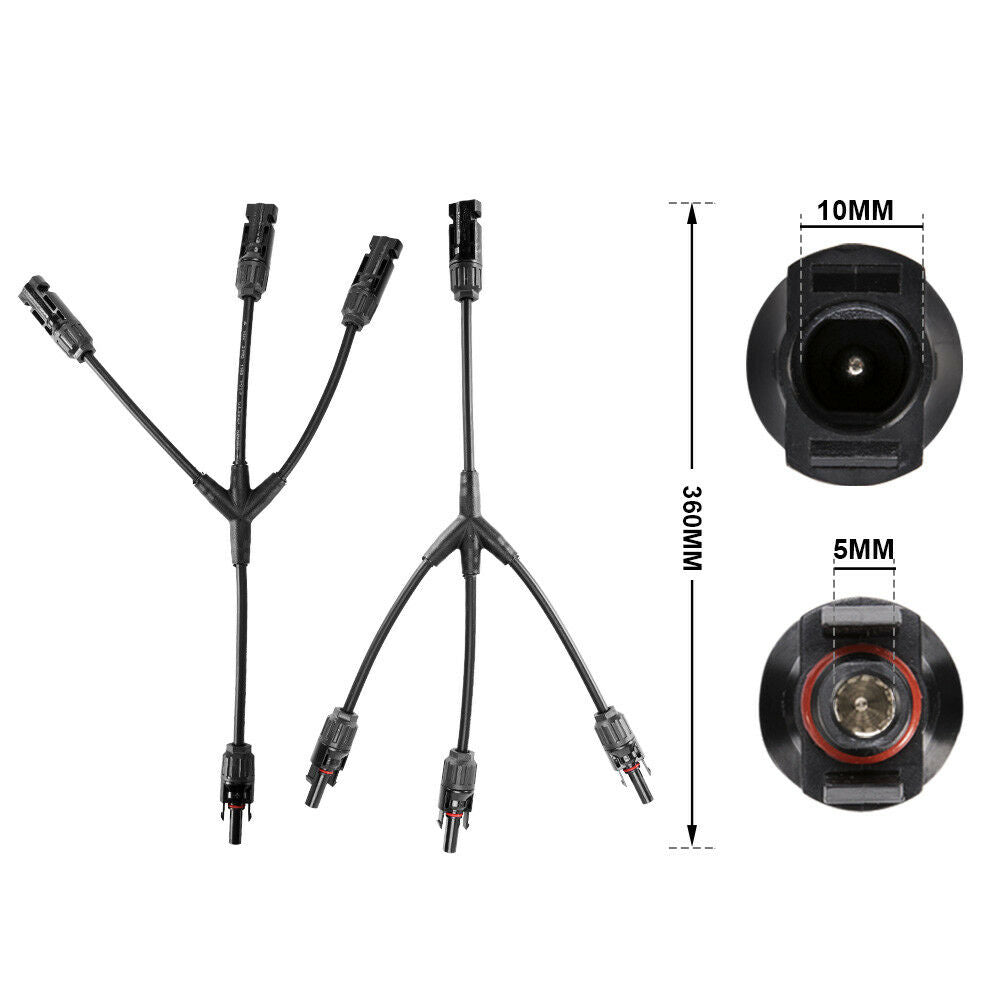

Diameter of Pin or Socket:4mm
Locking System:Snap in
Suitable cable :2.5mm2/4mm2/6mm2(AWG14/12/10)

Package Includes

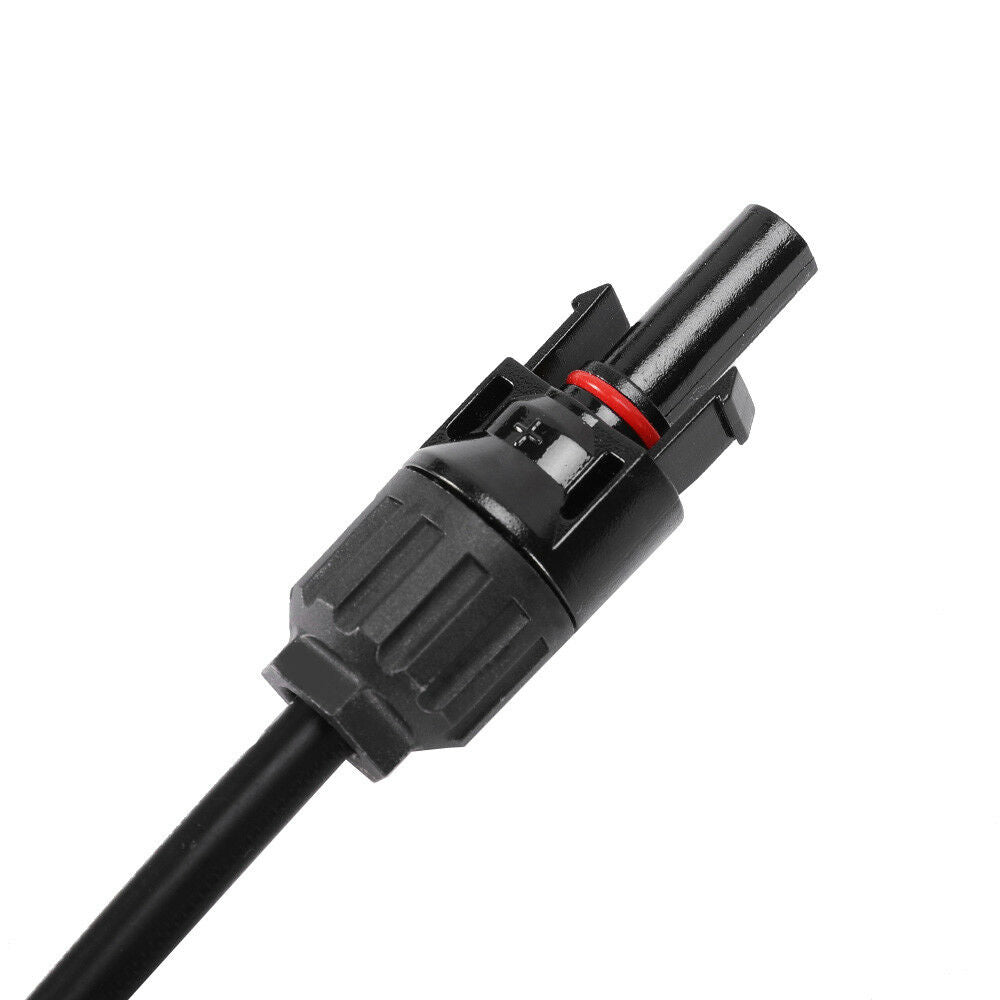

  • 1x Male Y Type Solar Panel cable Connector
  • 1x Female Y Type Solar Panel cable Connector

Warranty

12 months warranty
